Al04d20 20mm Diameter Mini Tube Linear Actuator

Specifications :

Input voltage: 12VDC or 24VDC

Size : diameter 20mm

Stroke :50mm/100mm/150mm/200mm/250mm,can make as your request.

Mini.installation dimension: stroke+145mm

Build-in integral limit switch, not adjustable after leaving factory.

Duty cycle : 10%, 2 minutes on/18 minutes off

Operational temperature: -26℃ to 65℃

IP class: IP56

Noise: 52dB

Certificates: CE & RoHS

Max. Load: 90N

Non-load speed:6mm/s

Load speed:4mm/s

Install holes: ¢ 5mm

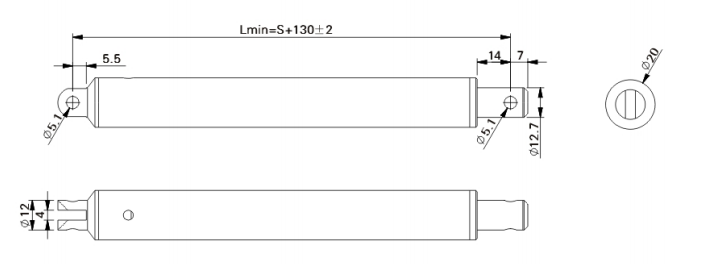

Drawings:

06

07
