Al04d50 50mm Diameter Tube Linear Actuator

Specifications :

Input voltage: 12VDC or 24VDC

Size : diameter 50mm

Stroke :50mm/100mm/150mm/200mm/250mm,can make as your request.

Mini.installation dimension: stroke+325mm

Build-in integral limit switch, not adjustable after leaving factory.

Duty cycle : 10%, 2 minutes on/18 minutes off

Operational temperature: -26℃ to 65℃

IP class: IP56

Noise: 52dB

Certificates: CE & RoHS

Max. Load: 3000N

Non-load speed:5.5mm/s

Load speed:4.5mm/s

Install holes: ¢ 10mm

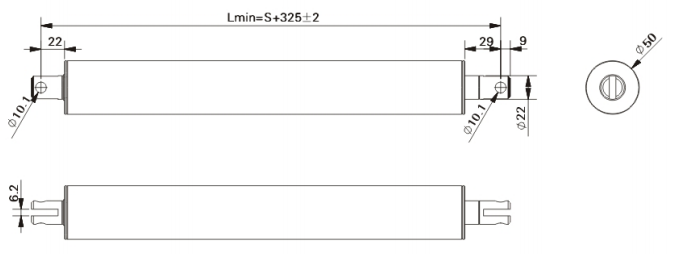

Drawings:

12

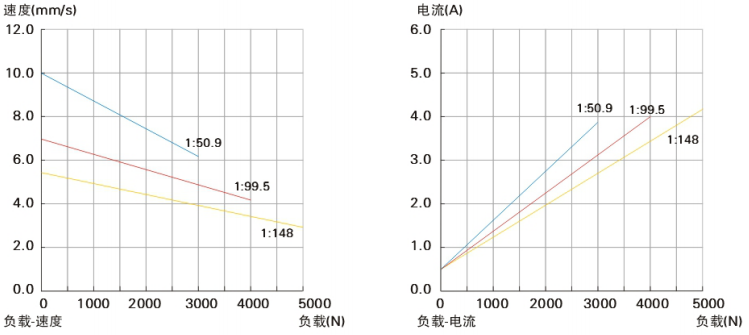

13
