Details
Al05 Column Lift
Specifications
Input voltage: 12V/24 VDC
Load Capacity: 6000N max
Speed: 4~ 16mm/s
Stroke: 50mm~ 500mm,can produce as your request.
Minimum installation distance: stroke + 175mm
Max. Speed: 20mm/s
Duty Cycle: 10% or 2 minutes continuous use followed by 18 minutes not in use .
Limit Switches: Built-in （Not Adjustable）
Operation Temperature: -25℃~ +65℃
Noise decibel: ≤48dB
Protection Class: IP54
Certificates:CE&RoHS

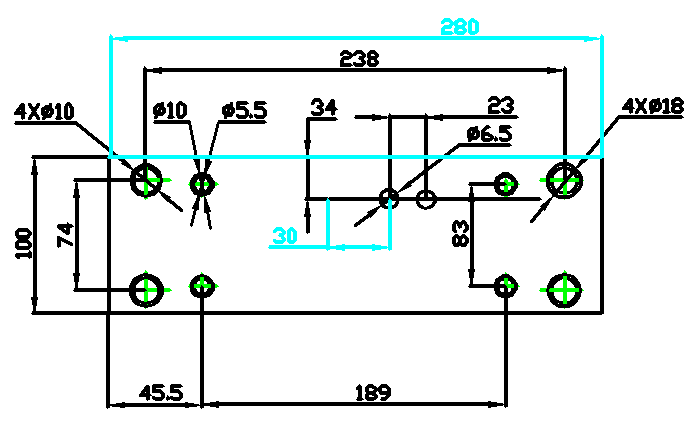

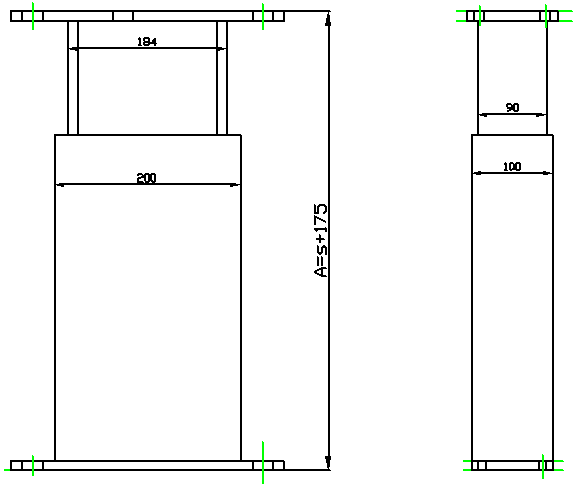

Drawings:
