Details
Al01 Deluxe Rod Actuators
Specifications
Input voltage: 12V/24 VDC
Load Capacity: 6000N max
Speed: 4~ 16mm/s
Stroke: 50mm~ 500mm,can produce as your request.

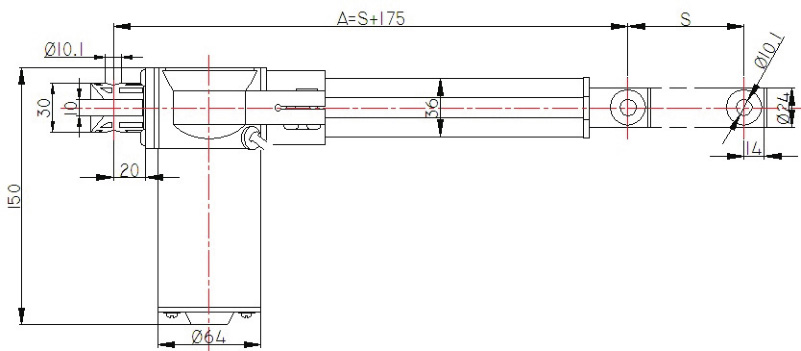

Minimum installation distance: stroke + 175mm
Duty Cycle: 10% or 2 minutes continuous use followed by 18 minutes not in use .
Limit Switches: Built-in （Not Adjustable）
Operation Temperature: -25℃~ +65℃
Noise decibel: ≤48dB
Protection Class: IP44
Certificates:CE&RoHS
|

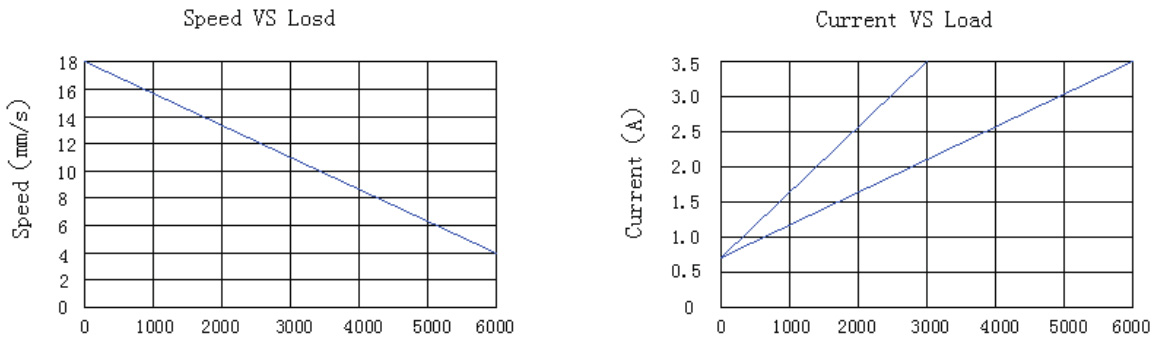

Load |
Speed |
|
6000N |
4mm/s |
|
3000N |
8mm/s |
|
1500N |
12mm/s |
