Al03 Mini Linear Actuators
Specifications
Input voltage: 12V/24 VDC
Max.Load: 1500N
Standard Stroke: 30/50100/150/200/250/300mm,
can produce as your request.
Speed: 4-25mm/s
Duty Cycle: 10%, work 2 minutes need to rest 18 minutes
Ambient Temperature: 一25℃ to 65℃
IP Grade: IP65

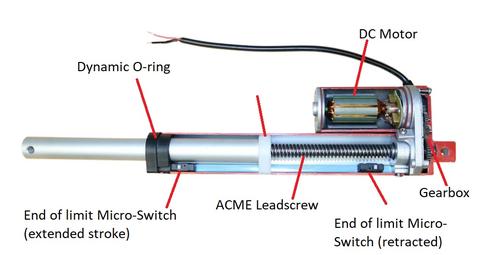

Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB≤50

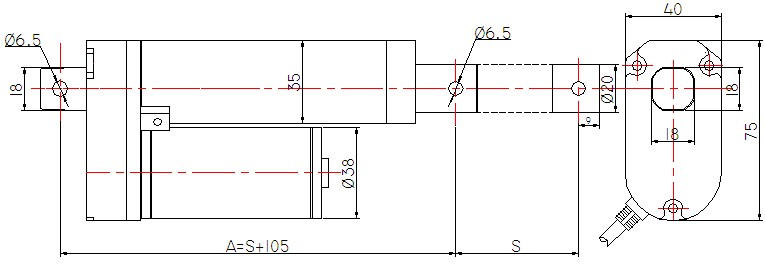

Min.install size: stroke+105mm
Certificates:CE&RoHS
|
Load |
Speed |
|
1500N |
4mm/s or 5.7mm/s |
|
1000N |
6mm/s or 8.8mm/s |
|
750N |
10mm/s |
|
600N |
12mm/s |
|
500N |
15mm/s |
|
400N |
20mm/s |
|
300N |
25mm/s |
|
200N |
30mm/s |
