Al06 Tubular High-Speed Linear Actuator

Specifications

Input voltage: 12V/24 VDC

Max. Load : 200N

Max. Speed: 230mm/s

Stroke: 50mm~ 500mm,can produce as your request.

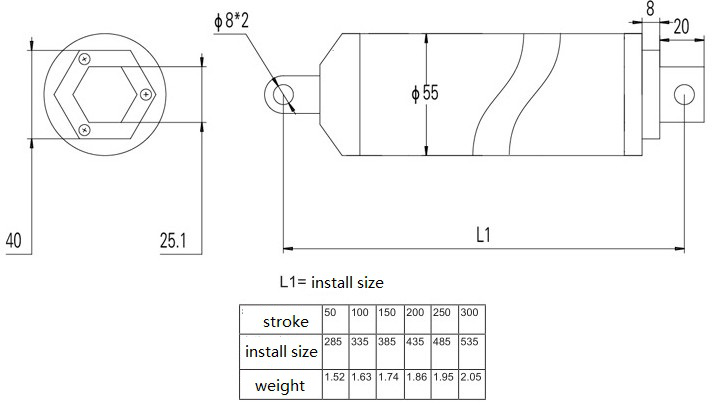

Minimum installation distance: stroke + 235mm

Diameter : 55mm

Duty Cycle: 10%  or 2 minutes continuous use followed by 18 minutes not in use .

Limit Switches: Built-in (Not Adjustable)

Operation Temperature: -25℃~ +65℃

Noise decibel: ≤48dB

Protection Class: IP65

Certificates:CE&RoHS

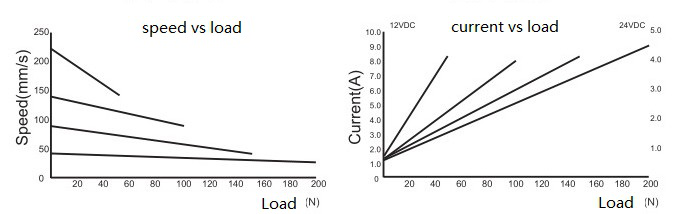

Load

Speed

200N

45mm/s

150N

80mm/s

100N

140mm/s

50N

230mm/s



17



18
