Al08 Solar Track Linear Actuator

Specifications:

Input voltage: 12VDC/ 24VDC/ 36VDC

Load capacity: 2500N

Stroke length: 18/ 24/ 36, can also produce as your request.

Load current 2.5A

Screw: ACME screw

Full load speed: 5mm/s

Duty cycle: 20%

Temperature: -26˚C~65 ˚C(-15˚F~150˚F)

Limit switch: inner, can be adjustable

Sensor: Reed Switch Sensor or potentiometer

Dynamic load: 8000N

Protection class: IP65

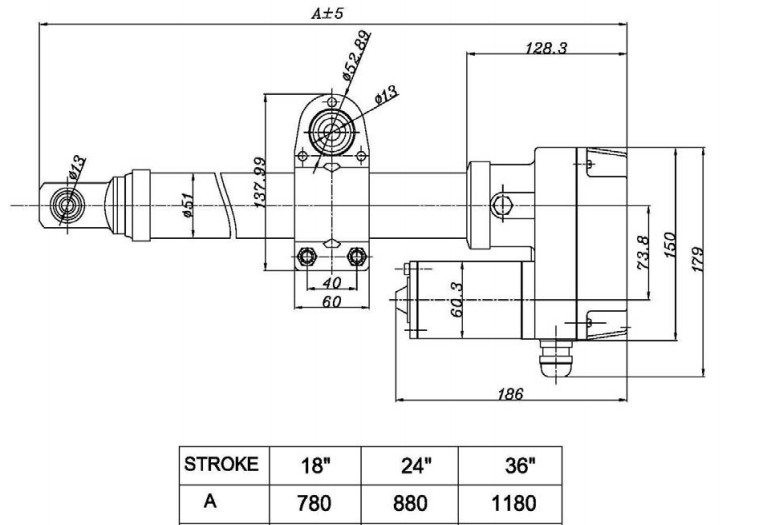

Dimensions:

24

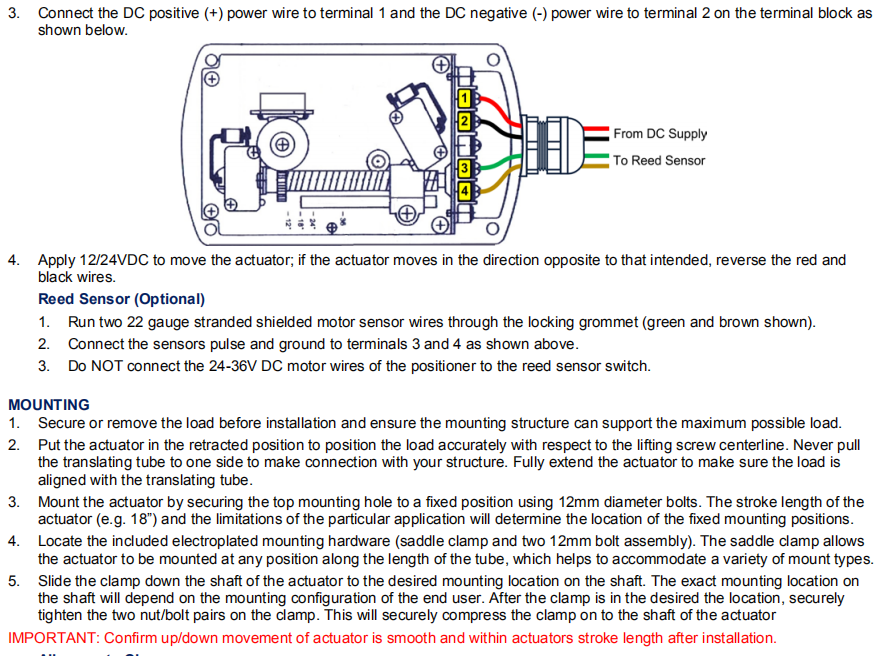

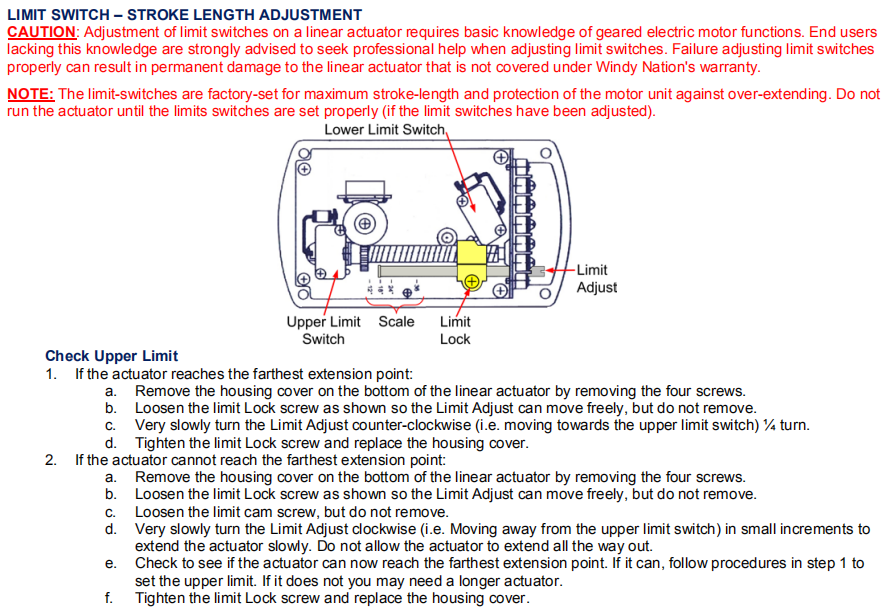

User manual:

25

26
